1734328-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1734328-2
Datasheet:
Description:

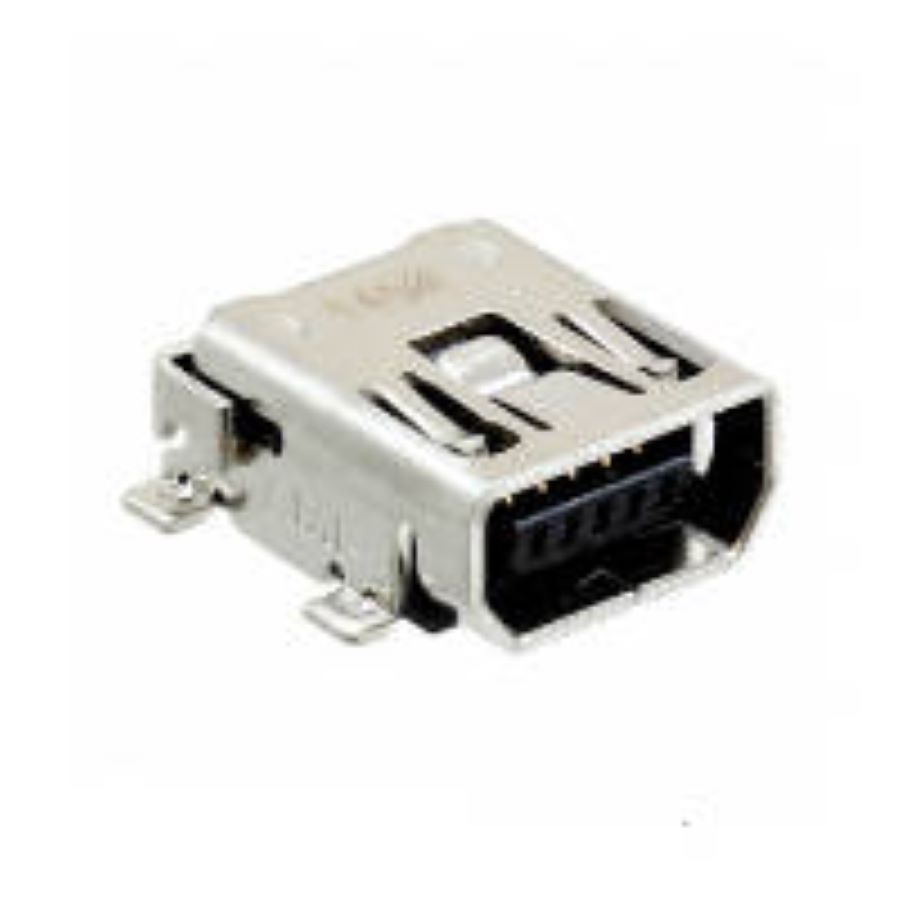

USB Connectors SMD/SMT USB - mini B Receptacle (Female) USB 2.0
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 800 µm |
| Type | USB - mini B |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Flammability Rating | UL94V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle (Female) |
| Shielding | Shielded |
| Number of Contacts | 5 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle |
| Number of Positions | 5 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Plating | Nickel |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 760 nm |
| Max RMS Current | 1 A |
| Mounting Angle | Right Angle |
Stock: 3625
Distributors
pcbx
pcbxUnit Price$1.50810
Ext.Price$1.50810
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50810 | $1.50810 |
| 10 | $1.18920 | $11.89200 |
| 25 | $1.08918 | $27.22950 |
| 50 | $1.06673 | $53.33650 |
| 100 | $1.04473 | $104.47300 |
| 300 | $1.02618 | $307.85400 |
| 500 | $1.00796 | $503.98000 |
